E-BIKE SPECIFICATIONS

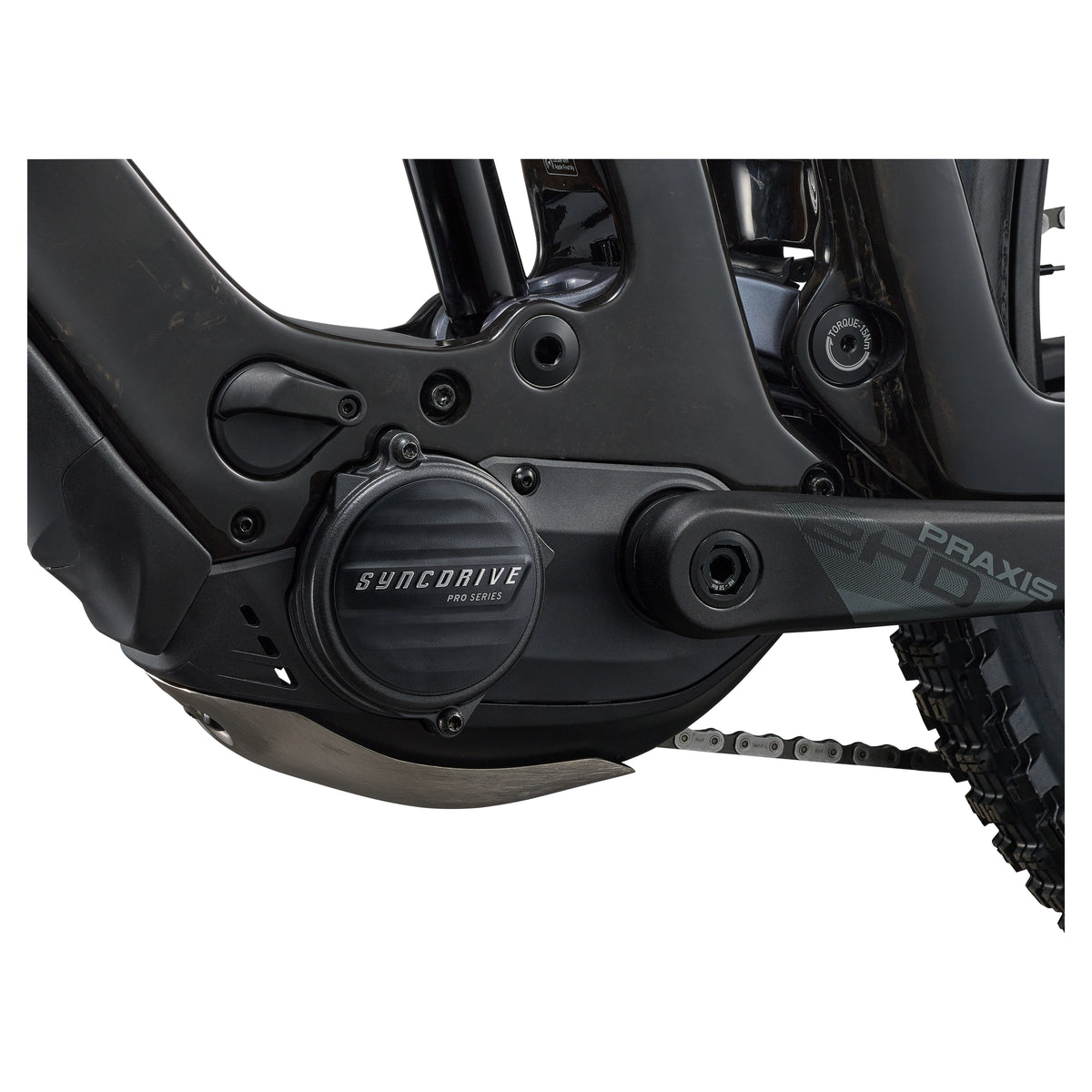

Motor: Giant SyncDrive Pro 3, 48v, 90Nm, 800W peak power

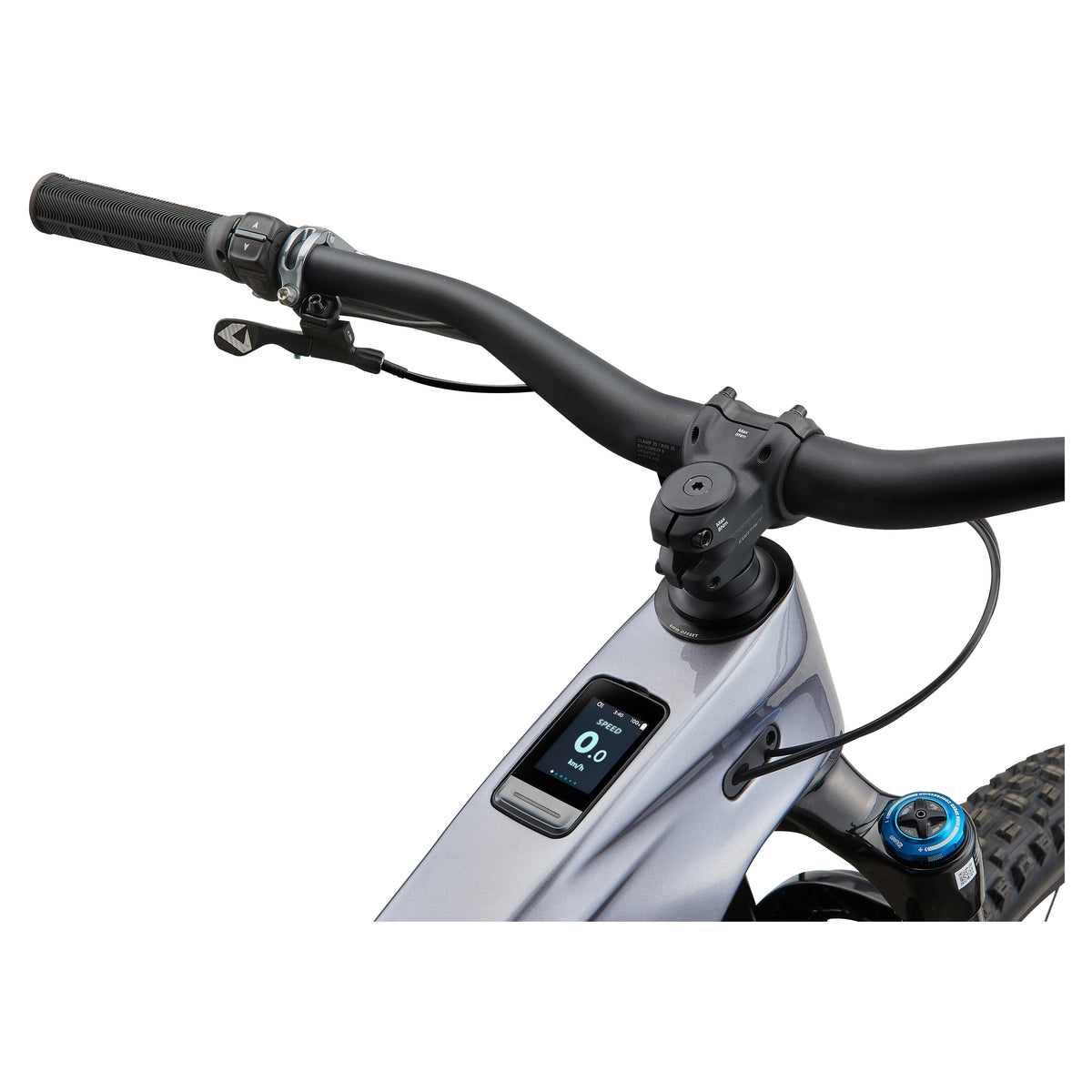

Controller: RideControl Ergo 4, grip integrated
Display: RideControl GO LUX, frame integrated LED display ANT+
Battery: EnergyPak Smart 560Wh EnergyPak Plus 280 range extender compatible
Charger: Giant EnergyPak smart charger 4A, 48V
Maximum Assisted Speed: Pedal-assist limited to 25 km/h in accordance with Australian regulations (EN15194); no motor support above this speed
Connectivity: Tyre Pressure Management System (TPMS) included in RideControl display
NSW Certification: ULL-104409-EA
SPECIFICATIONS

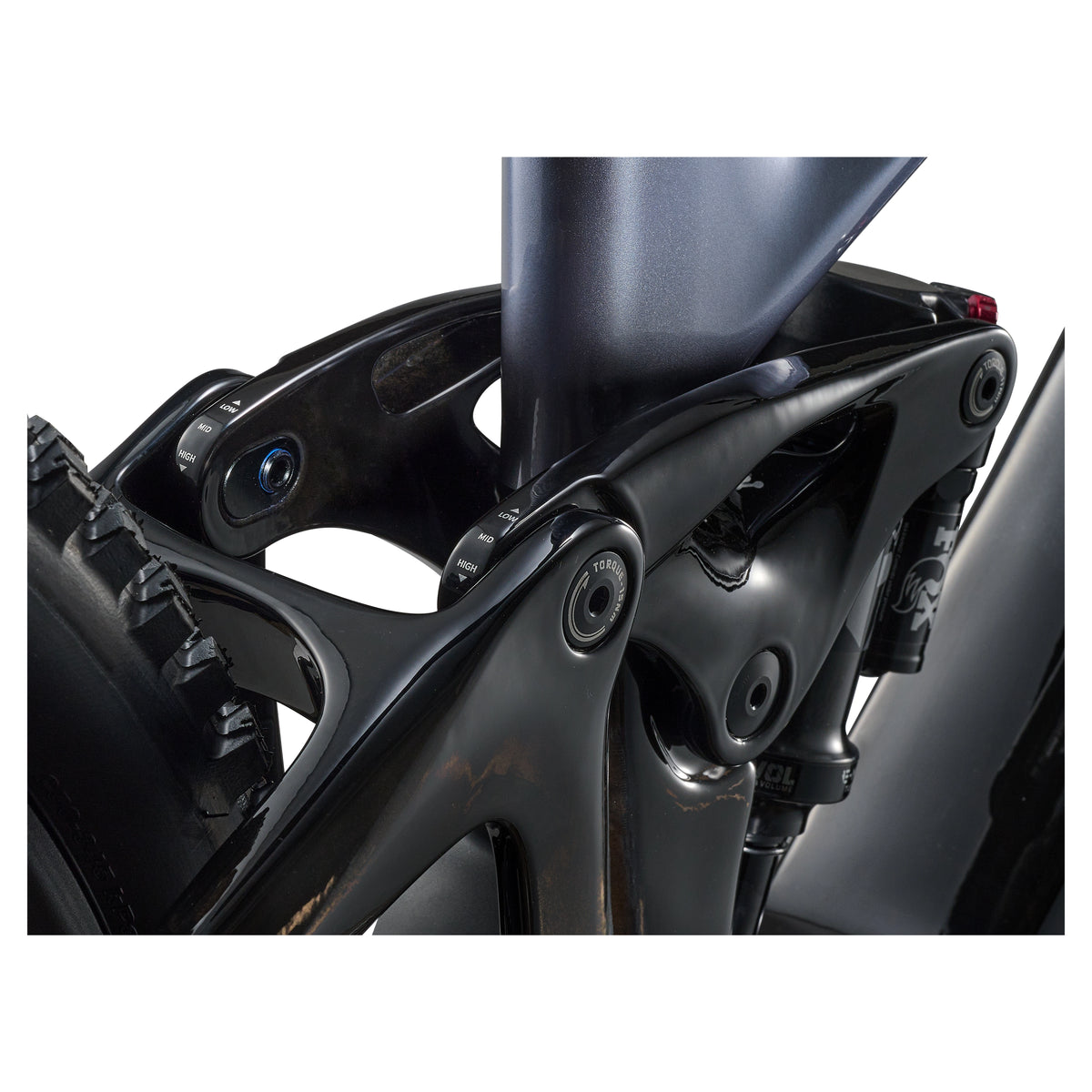

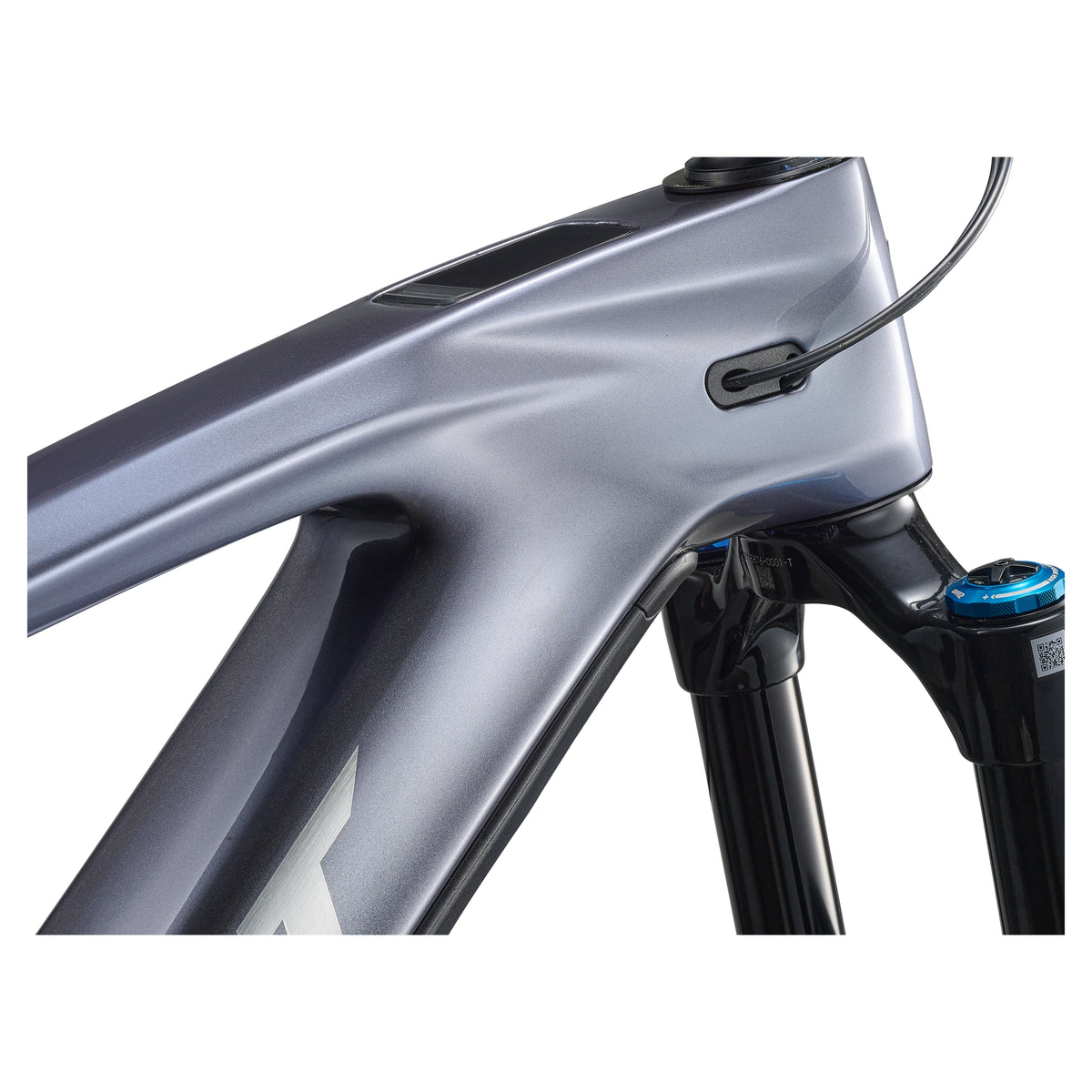

Frame: Advanced-grade composite, Advanced Forged Composite Upper Rocker, 170mm Maestro suspension system, flip chip, UDH hanger 12x148mm thru-axle

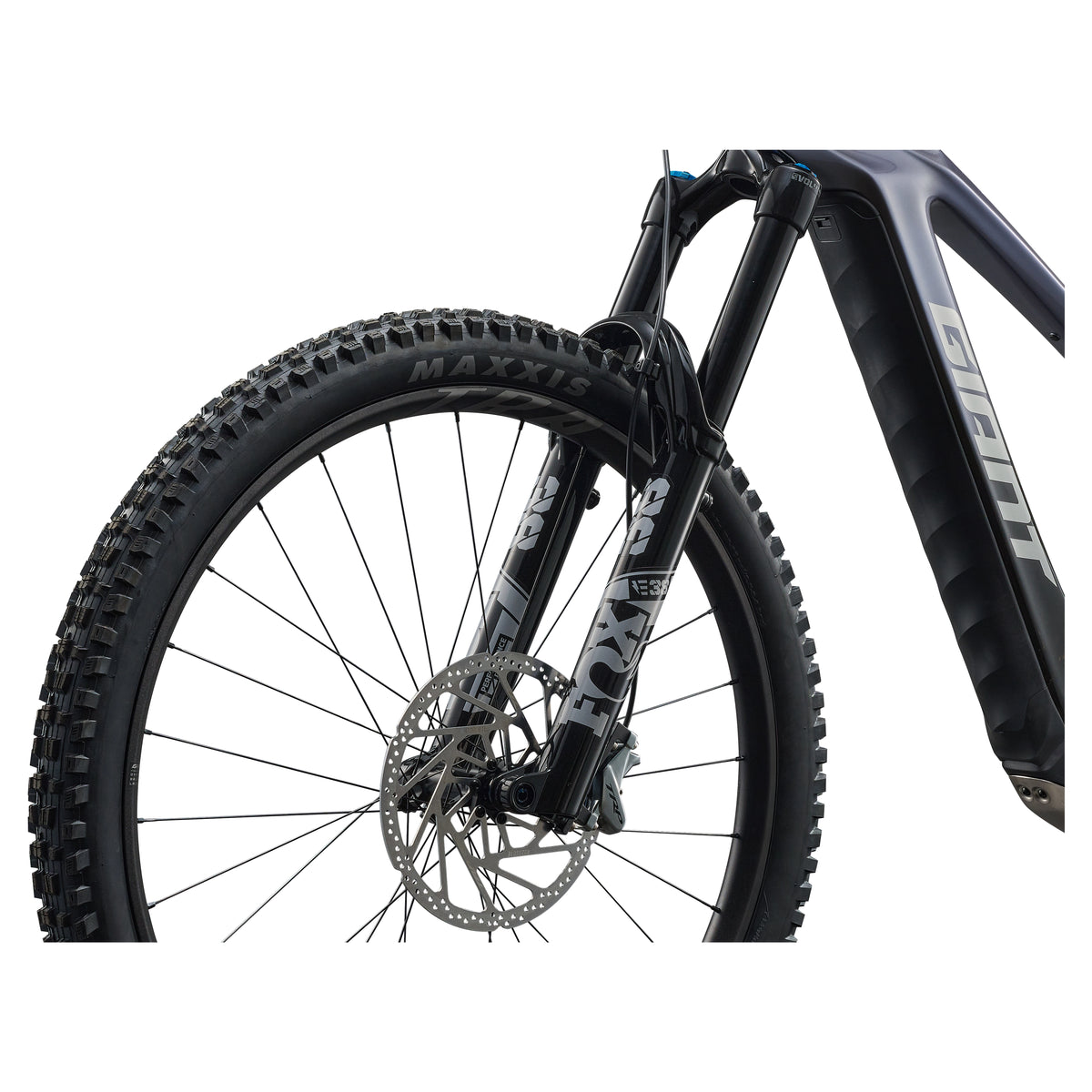

Fork: Fox 38 Performance Elite E-Tuned, 180mm travel, 44mm offset, GRIP X2 damper, Boost Kabolt-X 110x15mm

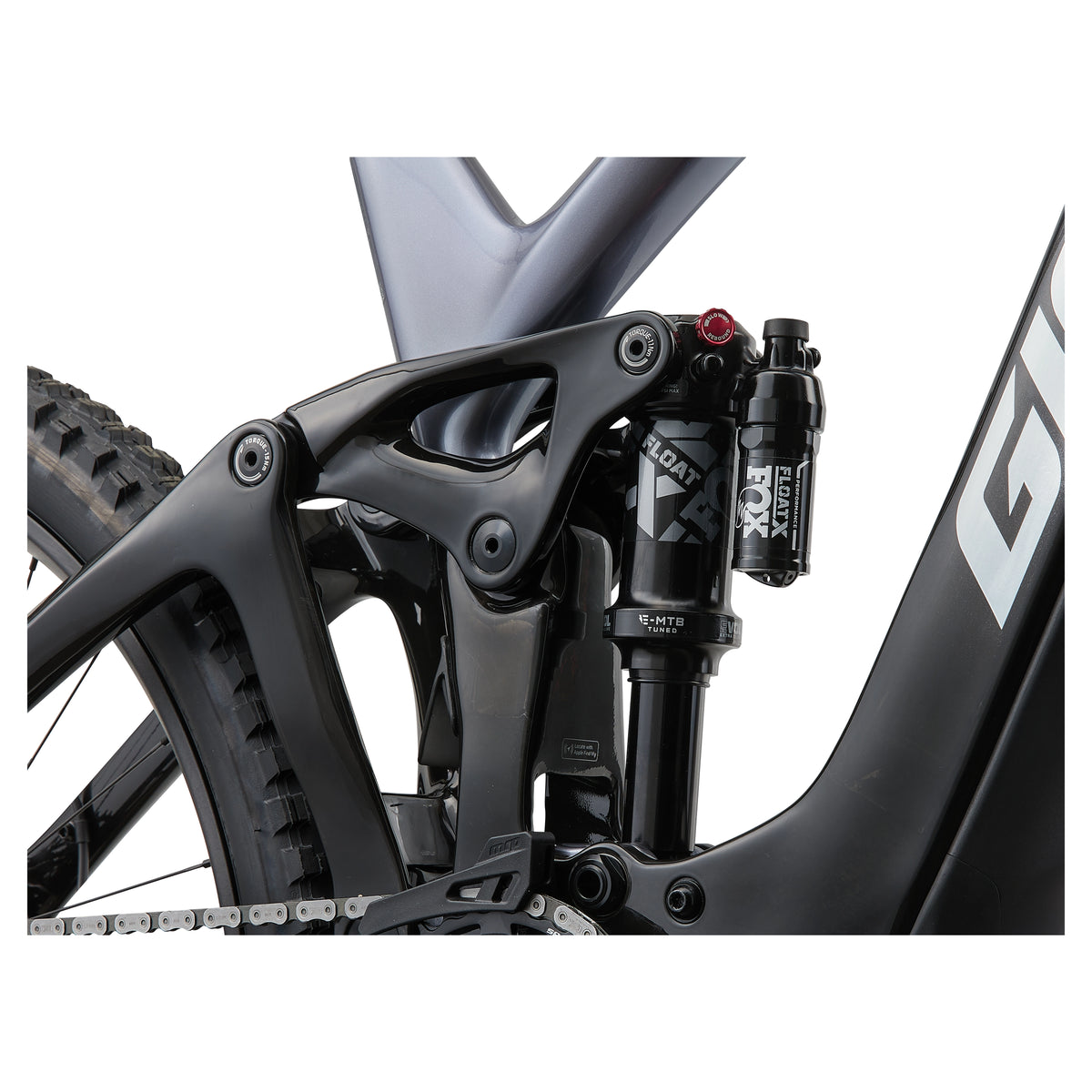

Shock: Fox Float X Performance, EVOL Large Volume sleeve, 2 position lever, custom tuned
Handlebar: Giant Contact Enduro, 35mm rise
Grips: Giant Tactal Pro-E, single lock-on
Stem: Giant Contact SL 35mm S:40mm, M:40mm, L:40mm, XL:40mm

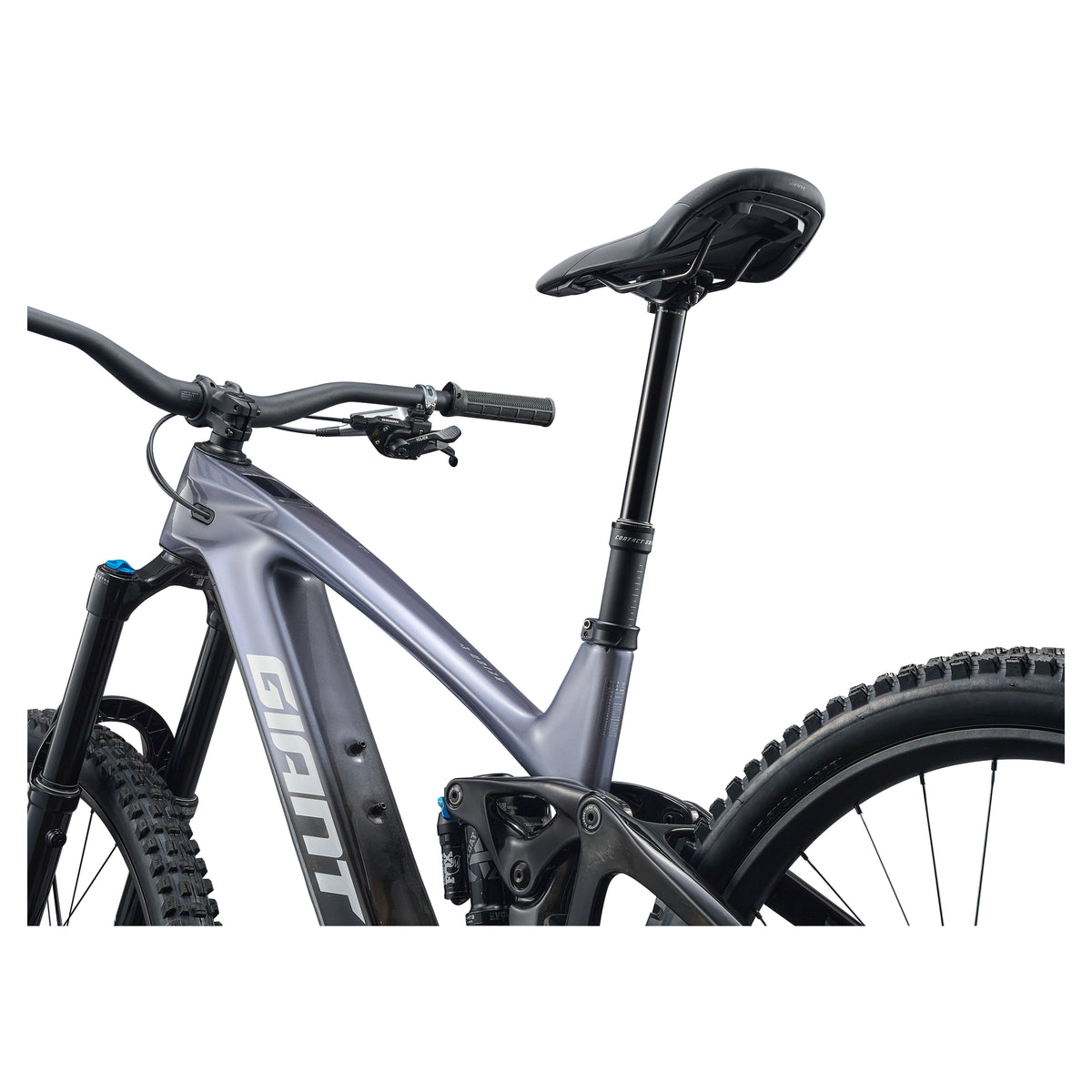

Seat Post: Giant Contact Switch travel-adjustable dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
Saddle: Giant Romero
Pedals: N/A
Shifters: SRAM Eagle 90, 1x12

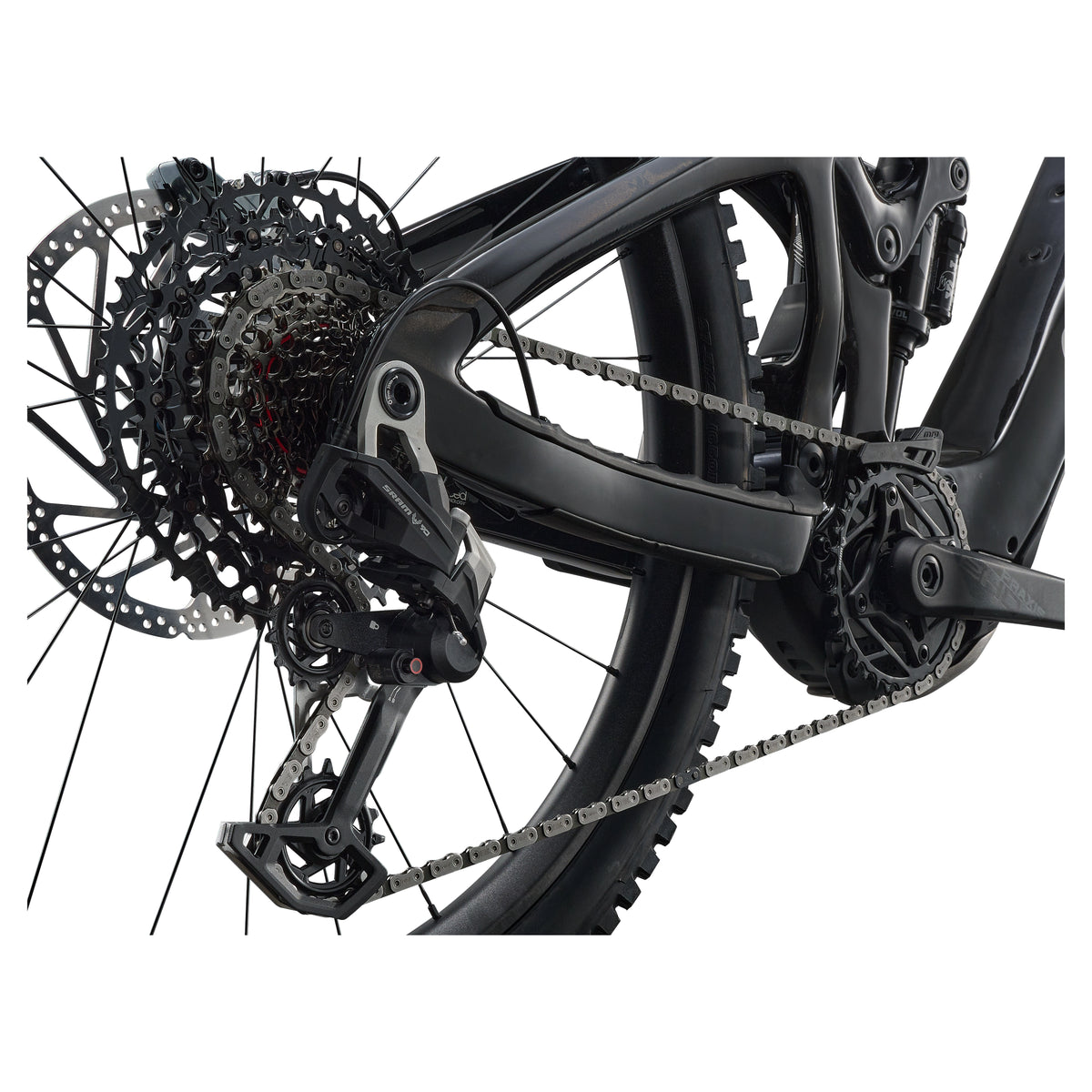

Rear Derailleur: SRAM Eagle 90 T-Type

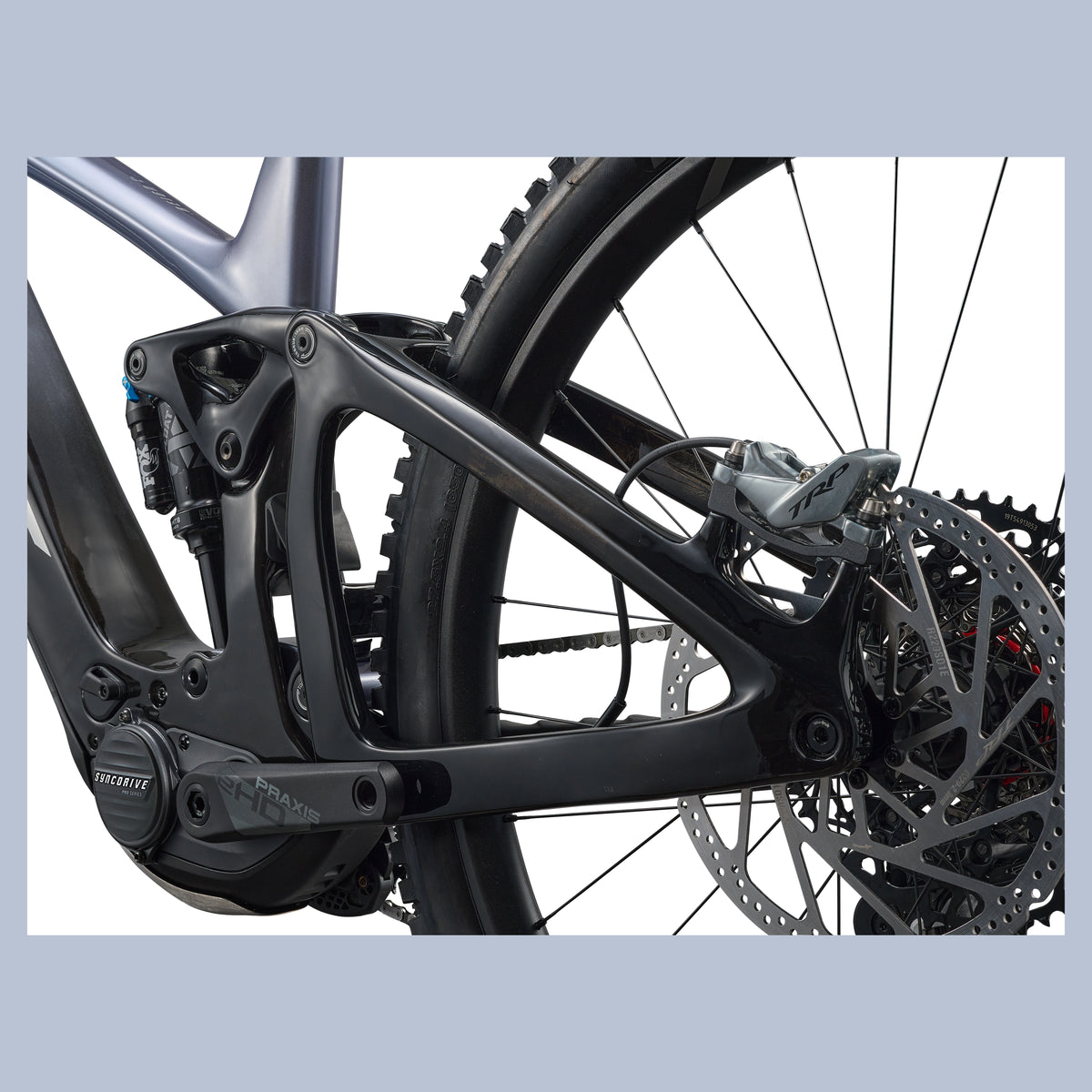

Brakes: TRP DH-R EVO DH, hydraulic, TRP rotors [F]220mm, [R]220mm
Brake Levers: TRP DH-R EVO
Cassette: SRAM XS-1270, T-Type 10x52T
Chain: SRAM Eagle 70 T-Type
Crankset: Praxis e-HD crank arms SRAM Eagle T-Type steel direct mount, 36T chain ring S:160mm, M: 160mm, L:160mm, XL:160mm
Bottom Bracket: N/A
Rims: Giant E-TRA Hookless Tubeless ready Alloy 29"" [F] 27.5"" [R] 30mm inner width
Hubs: Giant E-TRX MTB Alloy Hub, 6 Bolt, 110x15 [F] / 148x12 SRAM XD Drive Body Pawl Driver (6 Pawl 72T) Thru-axle [R]
Spokes: Sapim Laser, e-bike optimised
Tyres: Maxxis Assagai 29x2.5"" foldable, Tubeless, EXO+, 3C MaxxGrip [F] Maxxis Minion DHR II 27.5x2.4"" foldable, Tubeless, DoubleDown, 3C MaxxGrip Compound [R]
Extras: Tyre Pressure Management System, Torx 25 Battery Lock with built-in Torque limiter, Tubeless kit (liquid, valves, levers, manual, tool), MRP E-Amg, custom bashguard with integrated damping design
Lighting: Optional: Giant Recon series e-bike lights available and direct connectable
Colours: Mercury/Carbon Smoke
