E-BIKE SPECIFICATIONS

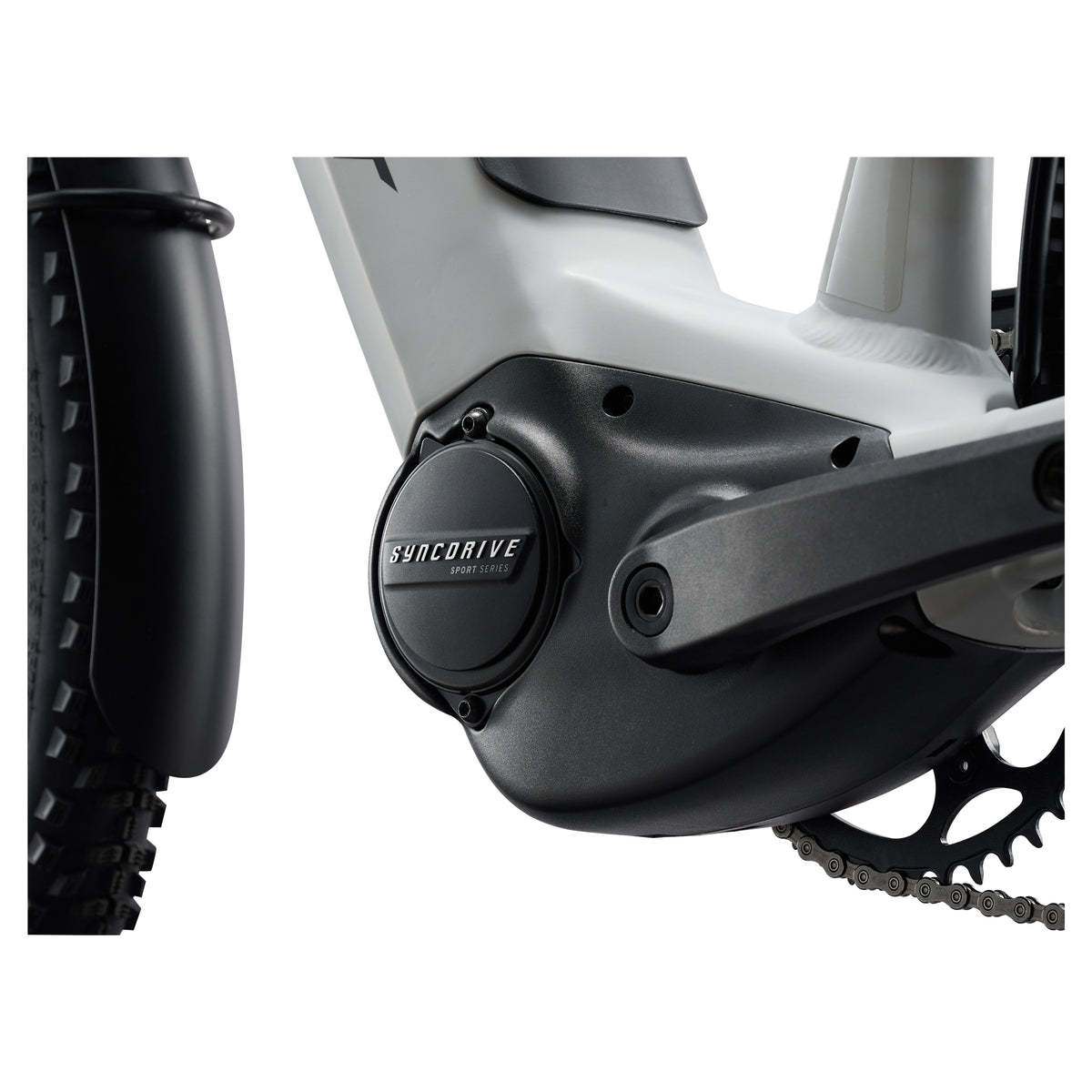

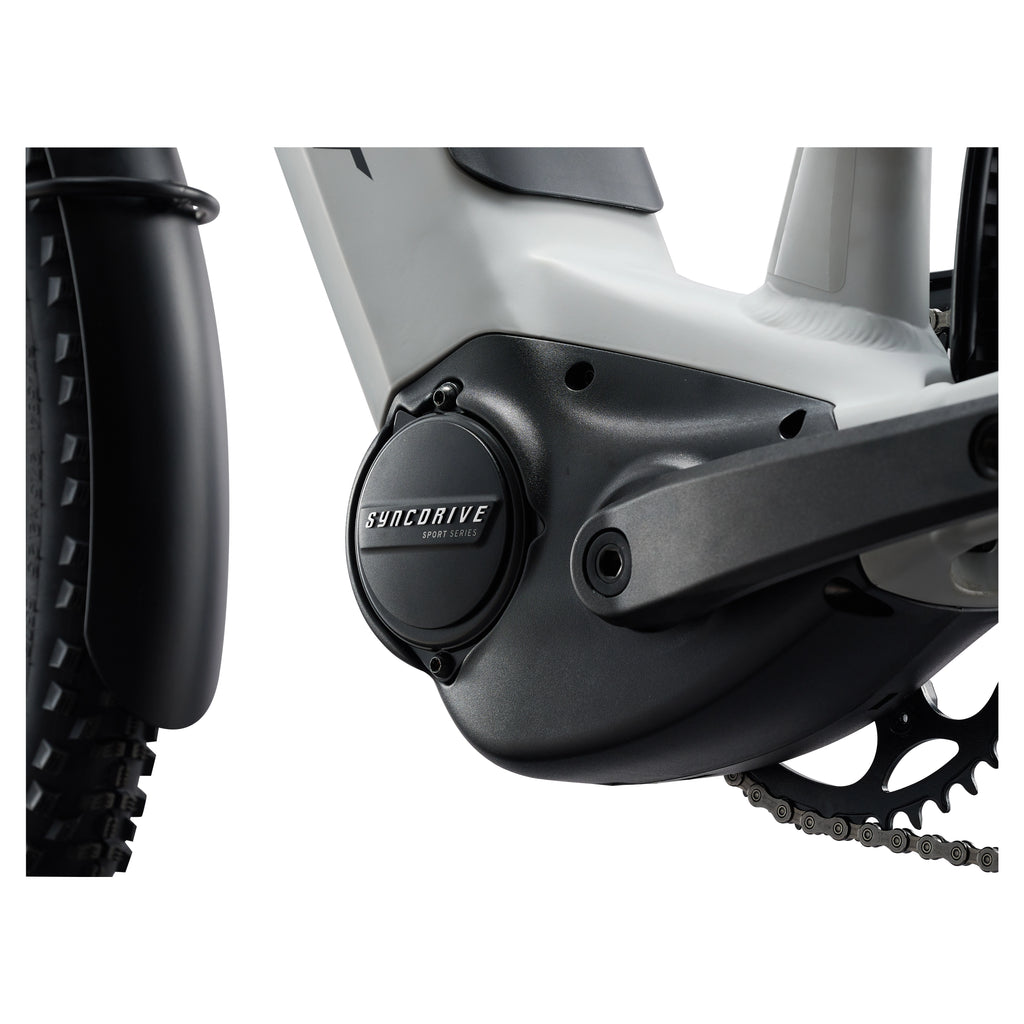

Motor: Giant SyncDrive Sport3 85Nm PedalPlus 6-Sensor technology
Battery: Giant EnergyPak 625Wh
Charger: Giant EnergyPak 4A smart charger
Controller: Giant RideControl Ergo 2 remote, Smart Assist automatic mode, 5 support levels, USB-C (10W)

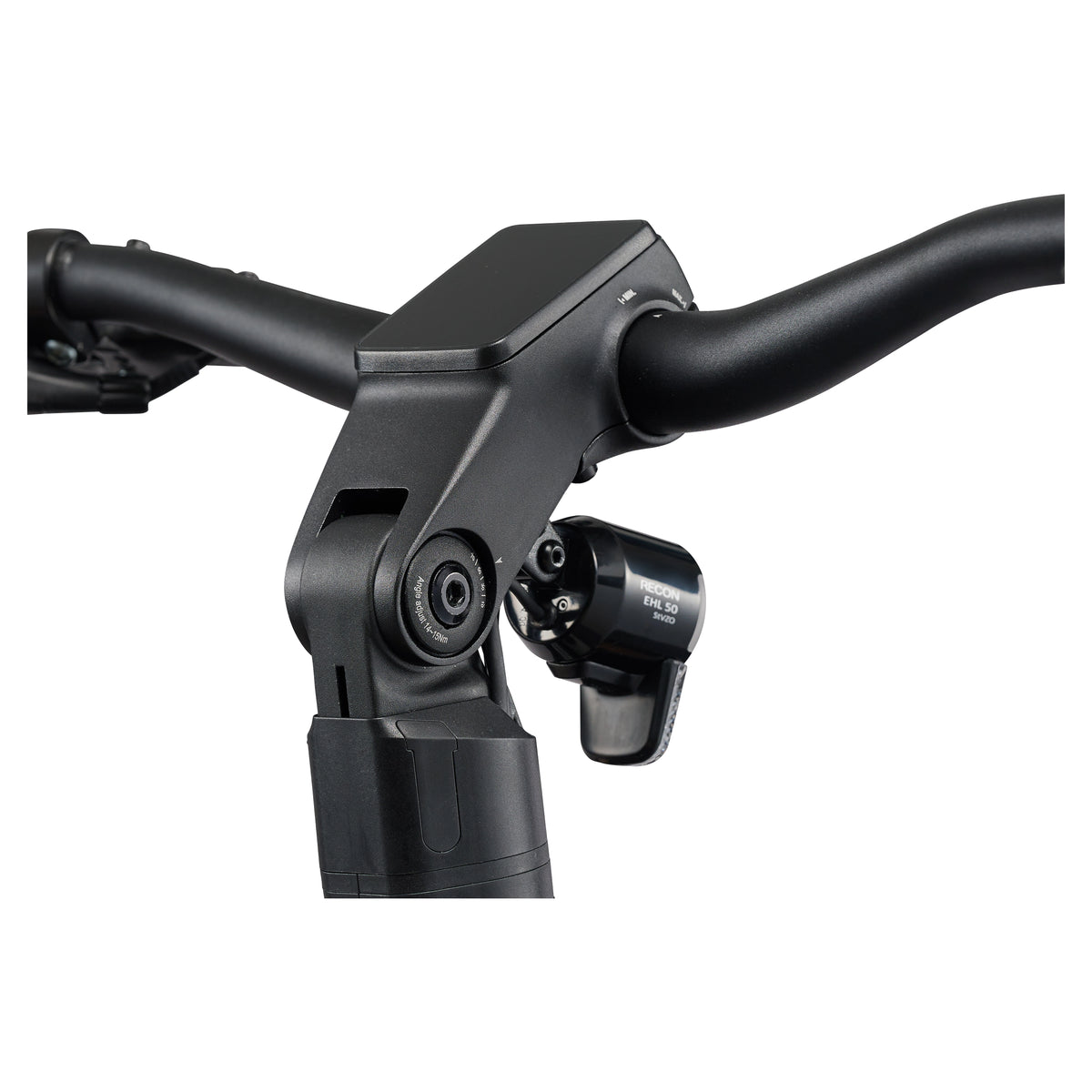

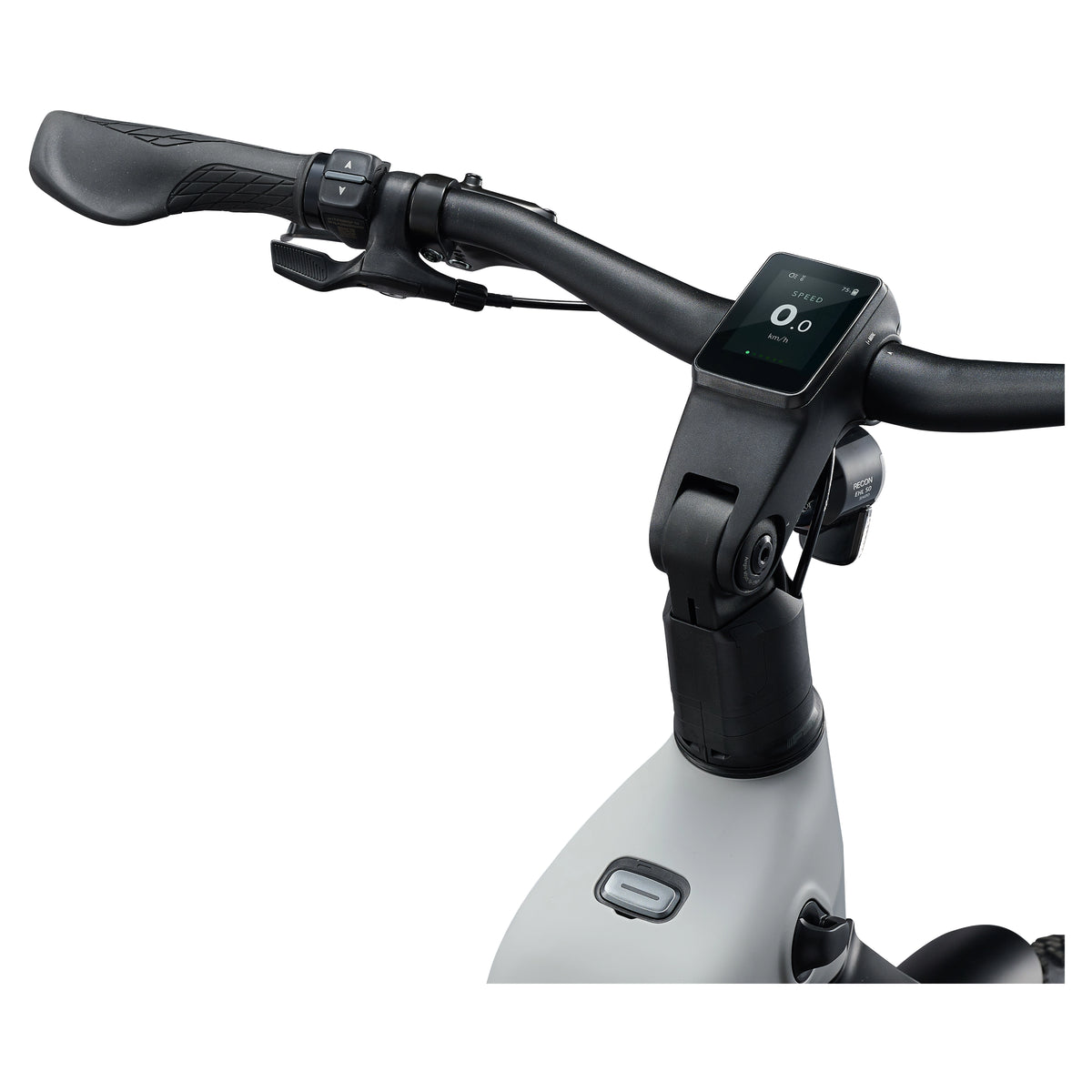

Display: Giant RideDash EVO, high-angle visibility, 3"" full colour LCD display, on-board navigation
Maximum Assisted Speed: Pedal-assist limited to 25 km/h in accordance with Australian regulations (EN15194); no motor support above this speed
NSW Certification: ULL-104-325-EA
SPECIFICATIONS
Frame: ALUXX SL-grade aluminium, Integrated battery design, Headset integrated cable routing, M10 Trailer Mount, KSA40 Kickstand

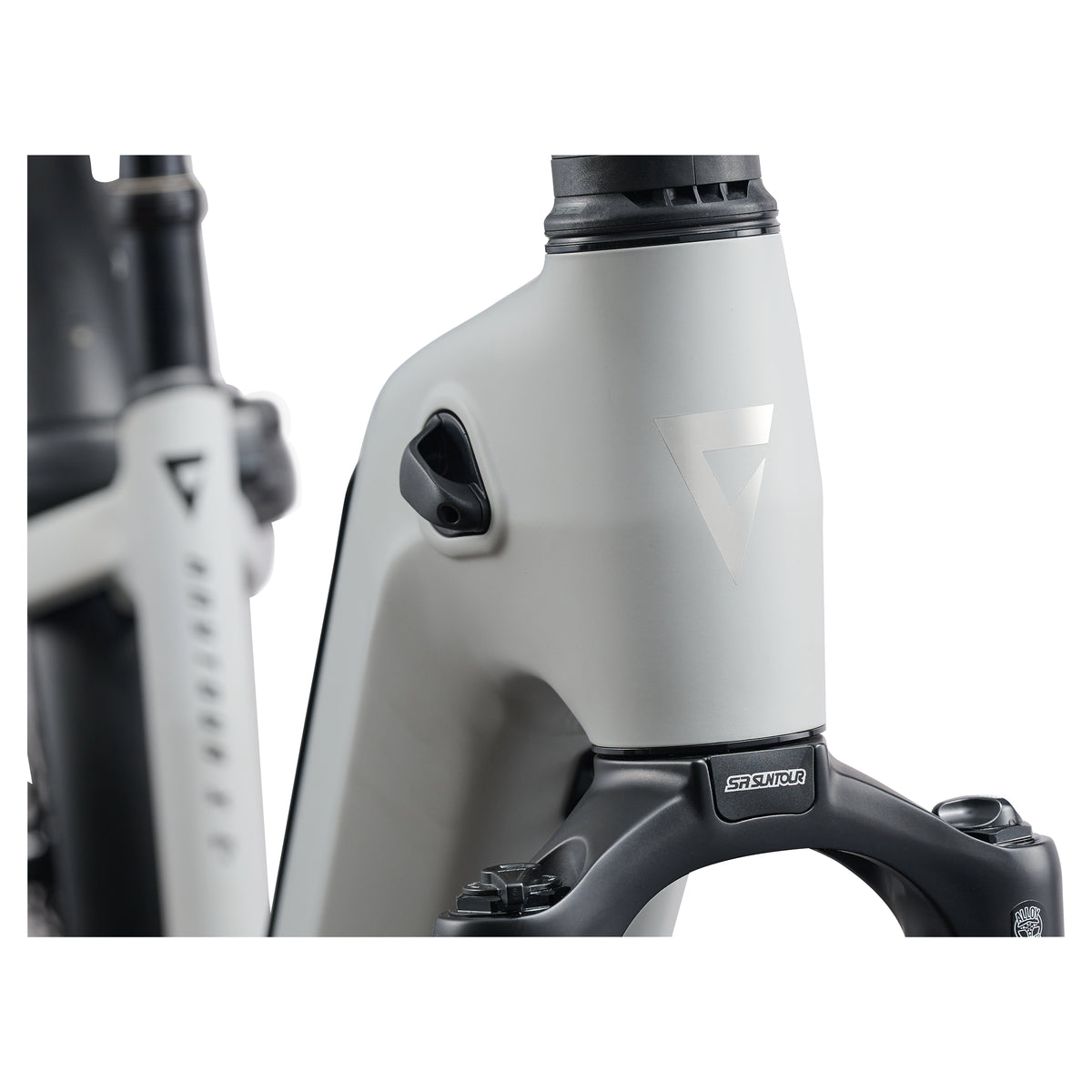

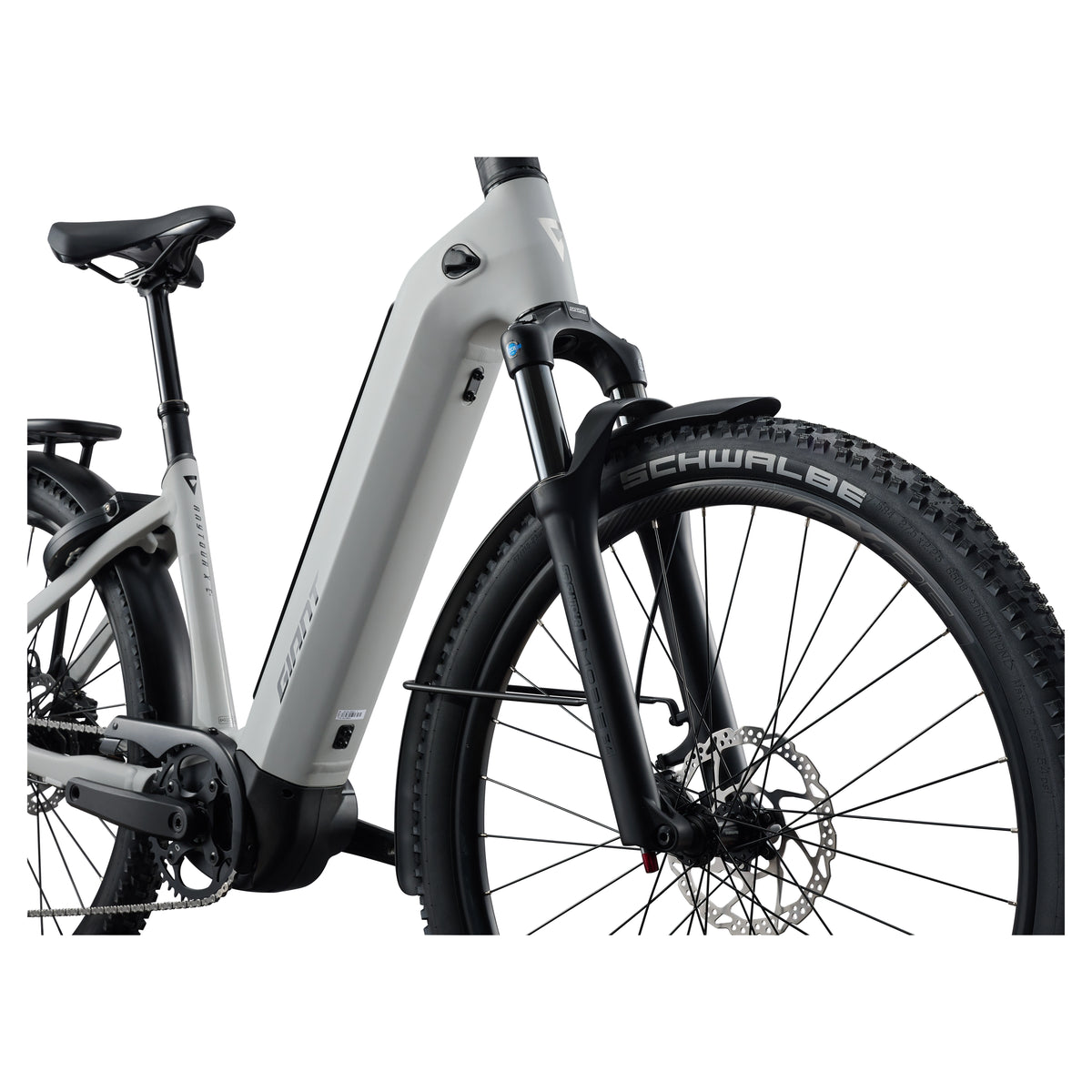

Fork: SR Suntour MOBIE 34 2CR 27.5"" Air 100mm travel, 15x100mm thru-axle
Handlebar: Giant Contour Comfort Riser 31.8mm
Stem: Giant Contour, RideDash EVO integrated, high adjustable, S:90mm, M:90mm, L:110mm, XL:110mm

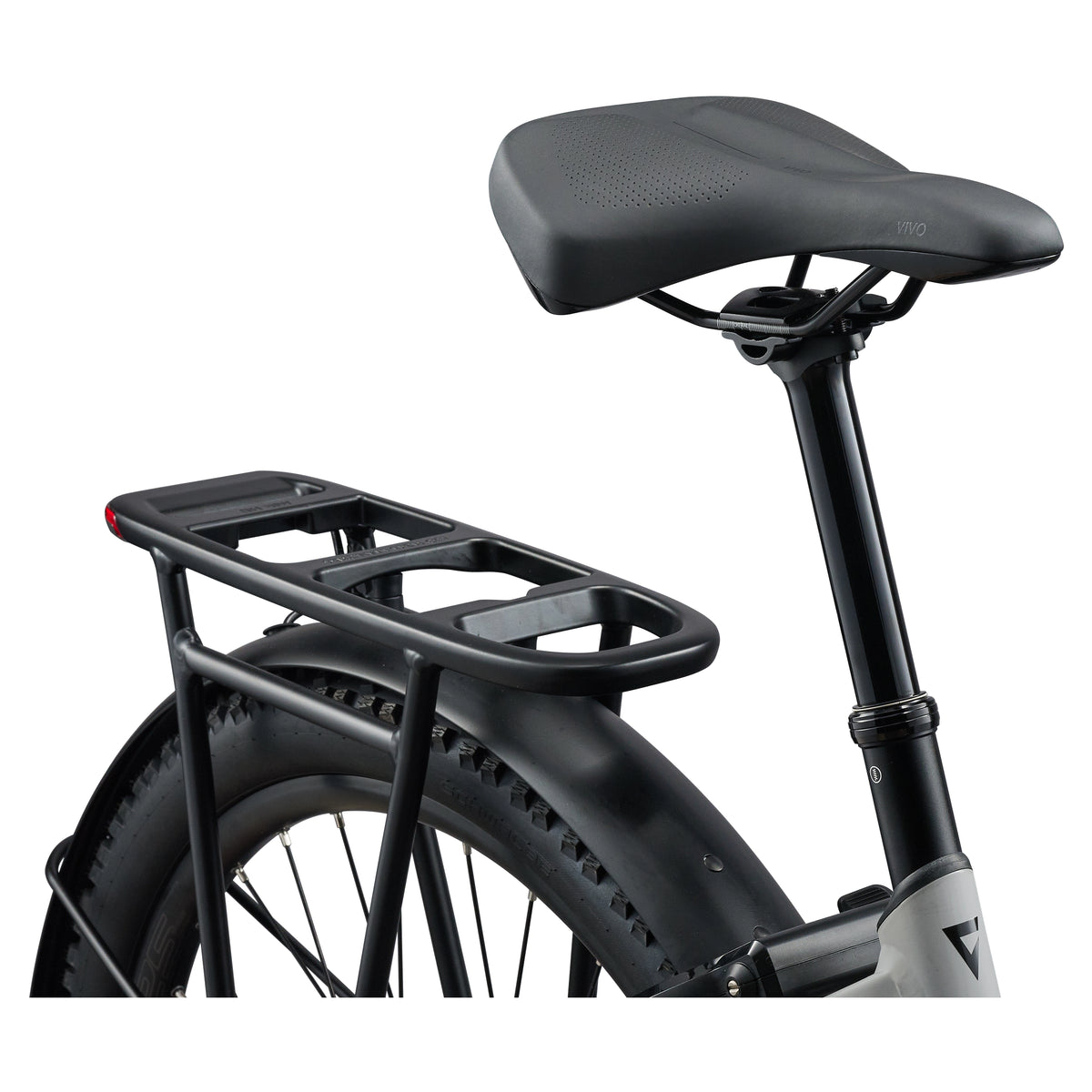

Seat Post: Suspension dropper post, 30.9mm, S: 60mm travel / 30.9 x 345mm, M: 80mm travel / 30.9 x 405mm, L: 100mm travel / 30.9 x 450mm, XL: 100mm travel / 30.9 x 450mm
Saddle: Selle Royal Vivo Ergo Unisex
Pedals: Platform
Shifters: Shimano CUES, SL-6000, 1x10
Front Derailleur: N/A

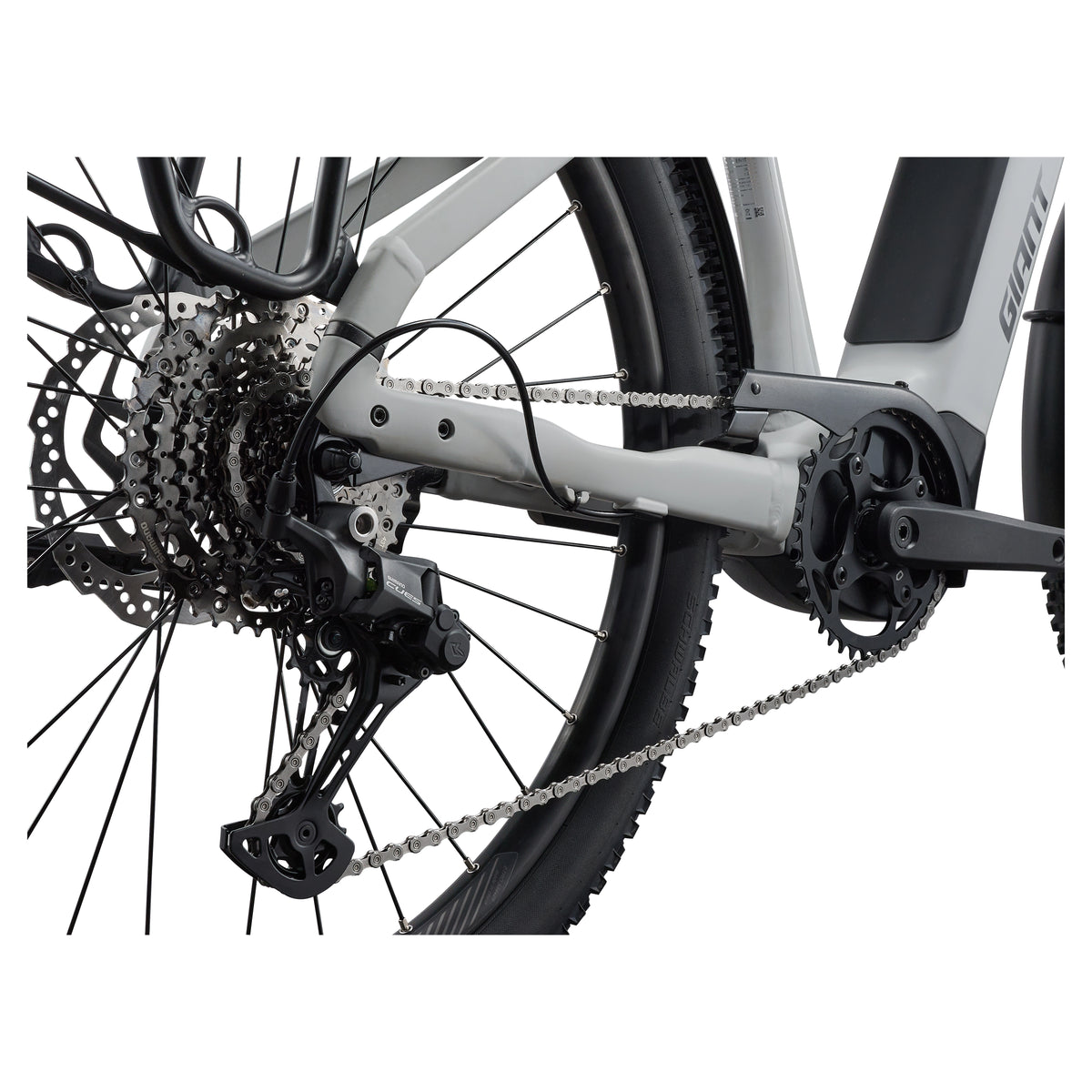

Rear Derailleur: Shimano Cues U6000, 10-speed
Brakes: Shimano BR-MT200, hydraulic disc, 4-piston, 180mm [F] 180mm [R]
Brake Levers: Shimano BL-MT200
Cassette: Shimano Cues LinkGlide LG-40010, 10-speed, 11-43T
Chain: Shimano Linkglide CN-LG500
Crankset: Forged Alloy, 42T
Bottom Bracket: N/A
Rims: Giant eX25, Tubeless Ready, Aluminium
Hubs: Shimano HB-TC500 100x15mm, Disc 32H [F] Shimano FH-QC400-HM, Disc 32H [R]
Spokes: Stainless steel
Tyres: Schwalbe Smart Sam Plus, 27.5x2.25"", DD, GreenGuard, ADDIX, E-50
Extras: KSA40 direct mount kickstand
Colours: Good Gray
