Giant 2026 Revolt 1

Giant 2026 Revolt 1

XS / Alpine Green
$2,499.00
Skip to product information
Giant 2026 Revolt 1
  • Giant 2026 Revolt 1
  • Giant 2026 Revolt 1
Giant 2026 Revolt 1
Giant

Giant 2026 Revolt 1

$2,499.00
SKU: 9080014123
SizeXS
ColourAlpine Green
Enquire for lead time

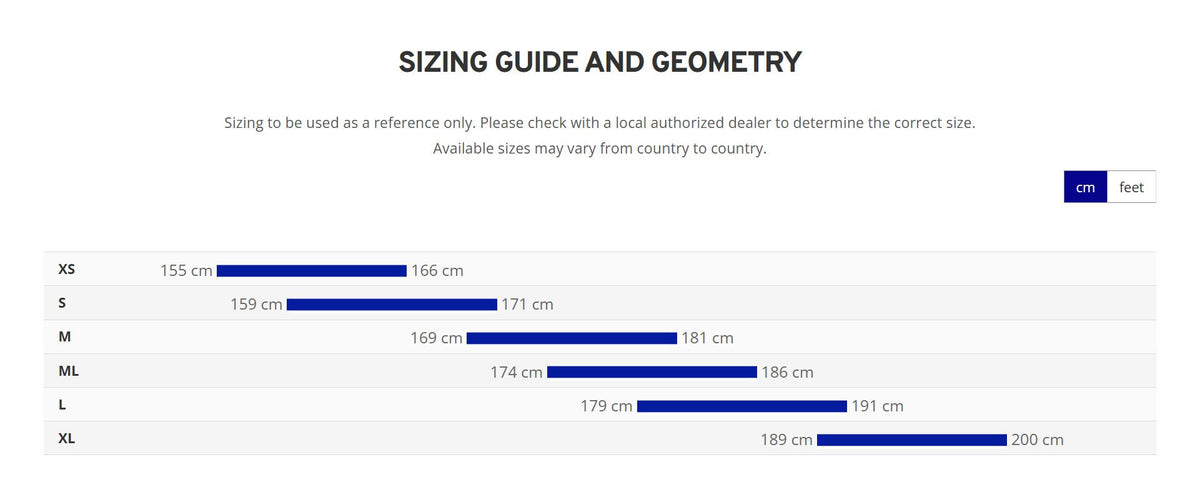

Bike sizing

Giant 2026 Revolt 1

Find your frame size based on your height. If you sit between two sizes, visit us in store and we will help you choose.
Bike sizing

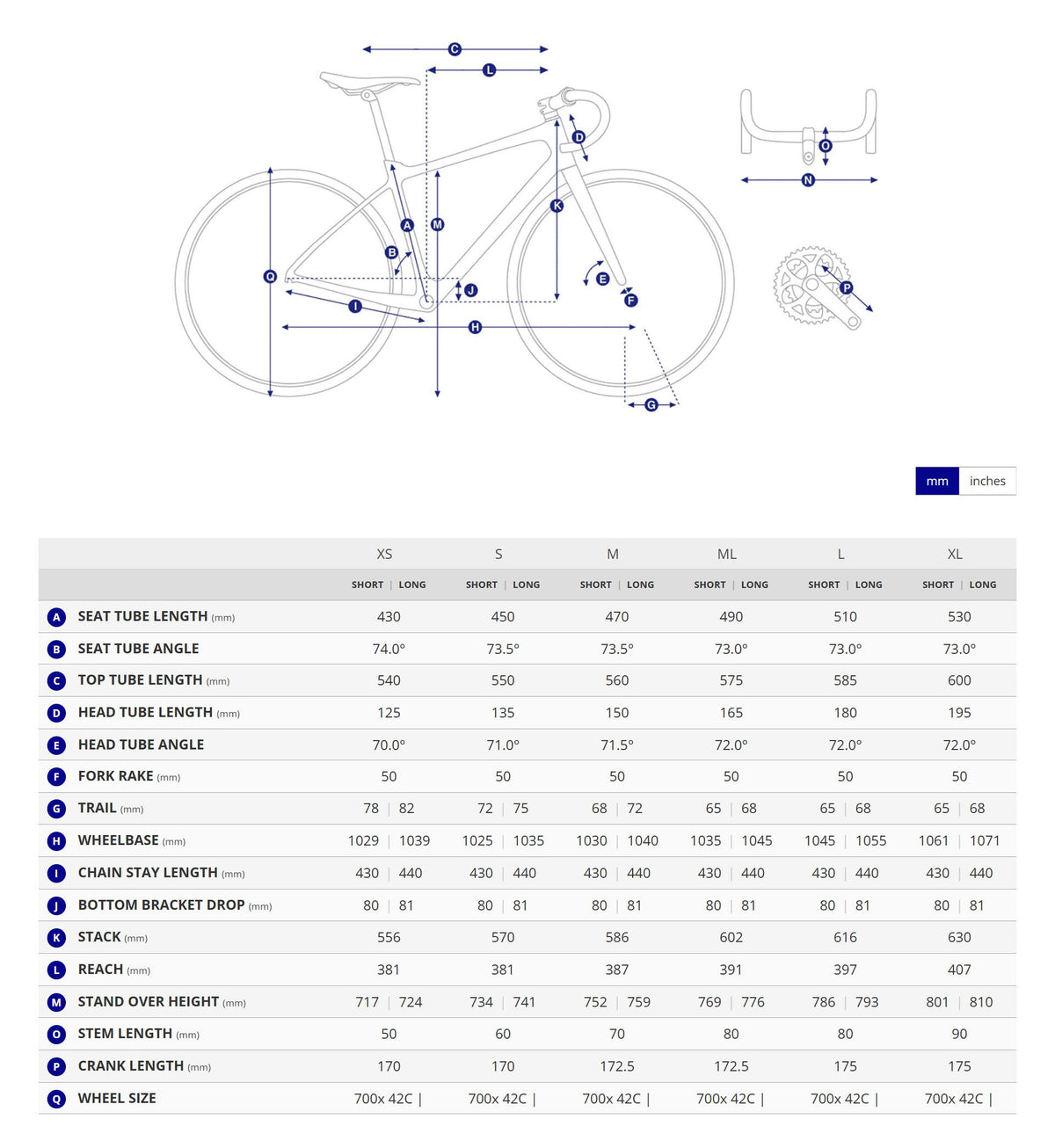

Bike geometry

Giant 2026 Revolt 1

Bike geometry

Enquire: Giant 2026 Revolt 1

Leave your details and we'll get back to you.

THE VERSITILE ALL-ROUNDER.

Ride roads, gravel or dirt with this versatile aluminium all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tyre clearance.

KEY FEATURES

  • CONFIDENT HANDLING: Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.
  • TUNED COMPLIANCE: Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
  • ADAPTABLE TO THE TERRAIN: A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

SPECIFICATIONS

Frame: ALUXX-grade aluminium, 12x142mm thru-axle, disc, flip chip dropout

Fork: Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

Handlebar: Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm

Stem: Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm

Seat Post: Giant D-Fuse, alloy, 14mm offset

Saddle: Giant Grit

Pedals: N/A

Shifters: Shimano CUES U6030, 2x10

Front Derailleur: Shimano CUES U6030

Rear Derailleur: Shimano Cues U6020, Shadow+

Brakes: Shimano CUES U6030 hydraulic, Giant MPH rotors [F]: 160mm / [R]: 160mm

Brake Levers: Shimano CUES U6030 hydraulic

Cassette: Shimano CS-LG300, 11x39

Chain: KMC X11

Crankset: Shimano Cues U6030-2, 32-46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

Bottom Bracket: Shimano, threaded

Rims: Giant S-X2 Disc wheelset, alloy

Hubs: Giant alloy, 12mm thru-axle

Spokes: Stainless

Tyres: Giant CrossCut AT 2, 700x38c, tubeless

Extras: Tubeless prepared, 53mm max tyre size in ""long"" flip chip position, 45mm max tyre size in ""short"" flip chip position

Max Tyre Clearance: 53mm

Colours: Alpine Green
